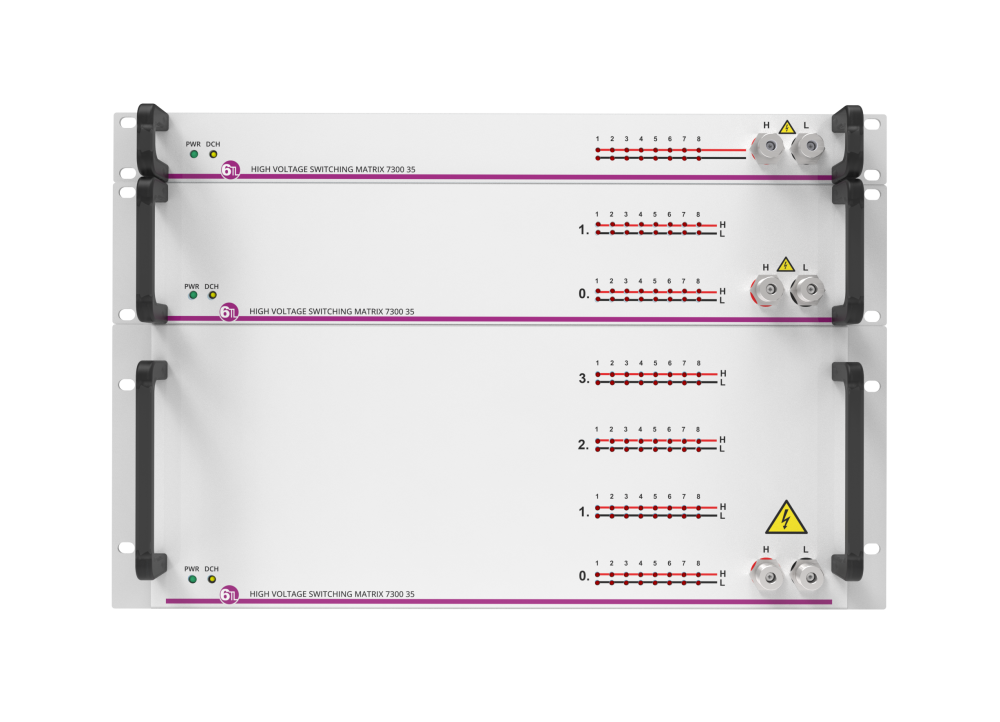

High Voltage Multiplexer

PN: H730035 Categories: , Tags: ,

  • FastATE technology: Modular, scalable and top flexible approach
  • Minimum wiring and easy maintenance; LabVIEW drivers
  • 19” rack, 1U, 2U, 4U or 6U depending on number of Channels
  • Ideal for Hipot test, dielectric strenght test, High value resistors measurement.
  • CE compilant, ESD safe
  • CAN bus Control (Control power 24Vdc)
Add to quote

Description

The 19″ high voltage matrix is used for switching/multiplexing high voltage potential tests. With this solution, it is possible to specifically select contact points via which a HiPot test checks the dielectric strength of a DUT.

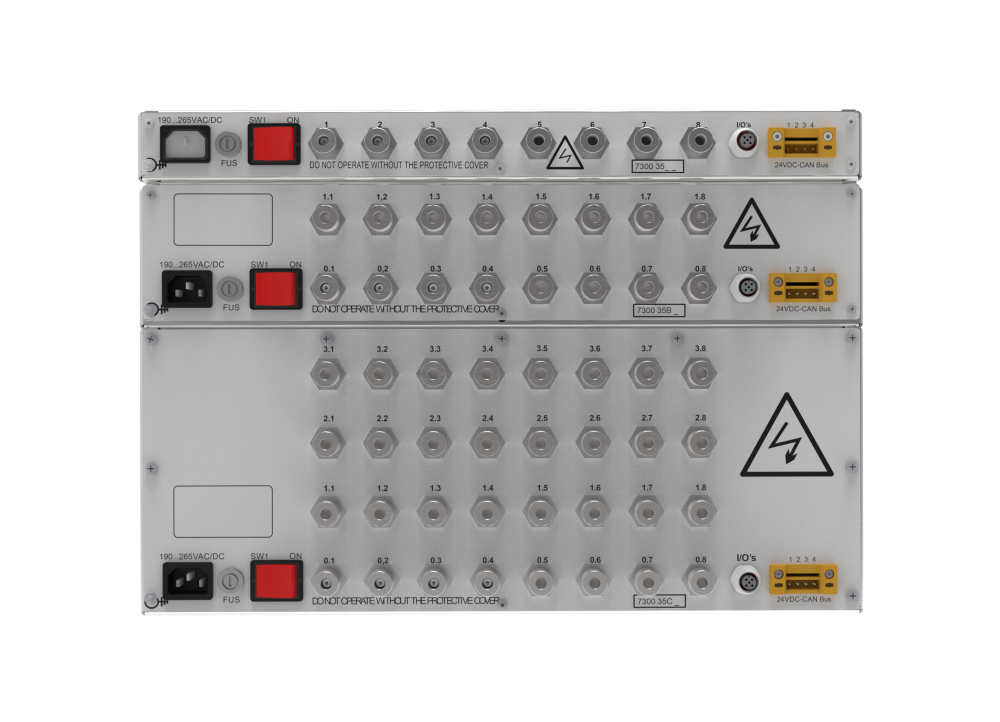

Special connectors allow voltages of up to 15kV and the systems are available from 4 to 48 (x2) channels.

The 19″ high voltage matrix is used for switching/multiplexing high voltage potential tests. With this solution, it is possible to specifically select contact points via which a HiPot test checks the dielectric strength of a DUT.
Special connectors allow voltages of up to 15kV and the systems are available from 4 to 48 (x2) channels.

Channel Configuration

5kV

10kV

15kV

2 x 8

H7300358A

H7300358B

H7300358C

2 x 16

H730035BA

H730035BB

H730035BC

2 x 32

H730035DA

H730035DB

H730035GA

In order to connect the matrix to the system in the best possible way, we offer patchcords with matching mating connectors.

Cabling Options

5kV

10kV/15kV

HV Patchcord Single ended - 1m

H730035C3

H730035C4

HV Patchcord Single ended - 2m

H730035C1

H730035C2

Download the full brochure here: High voltage multiplexer
