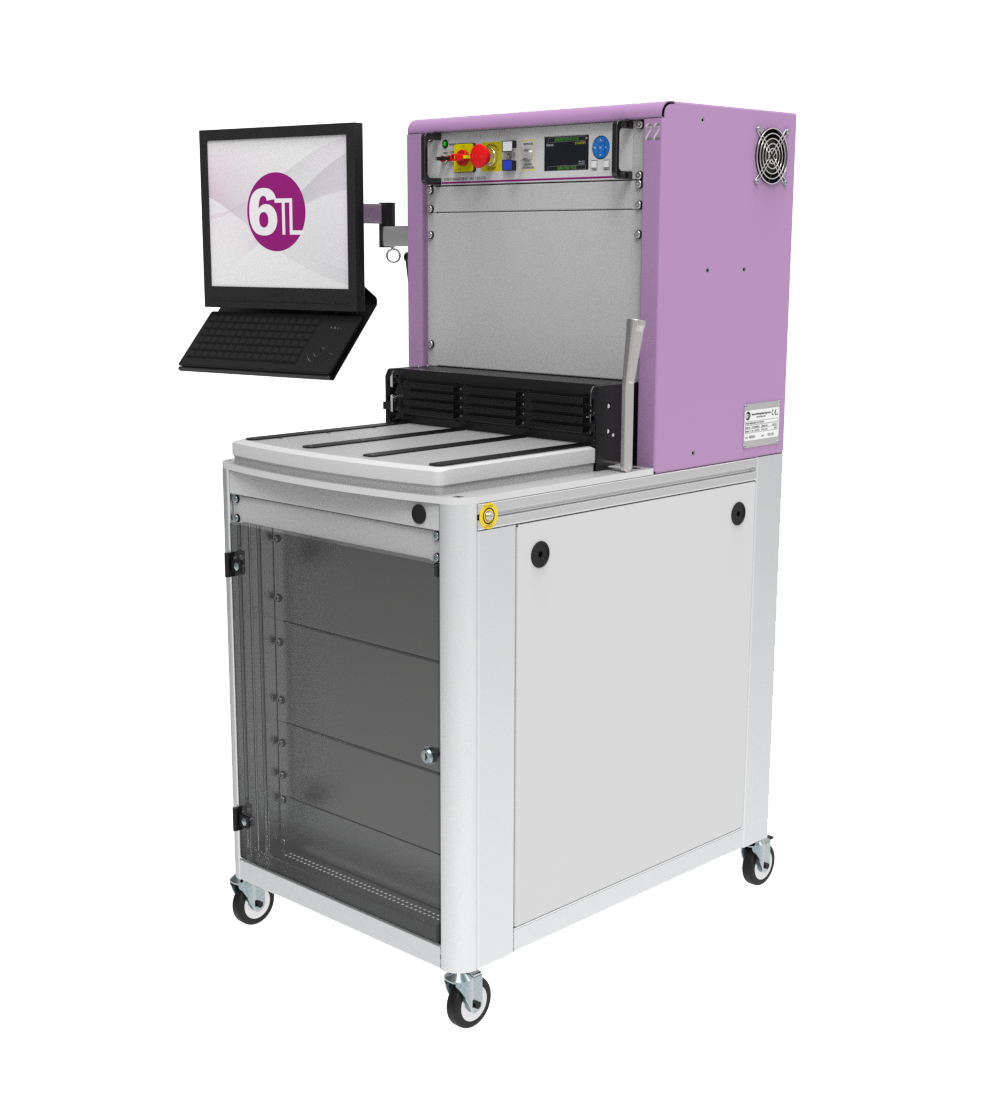

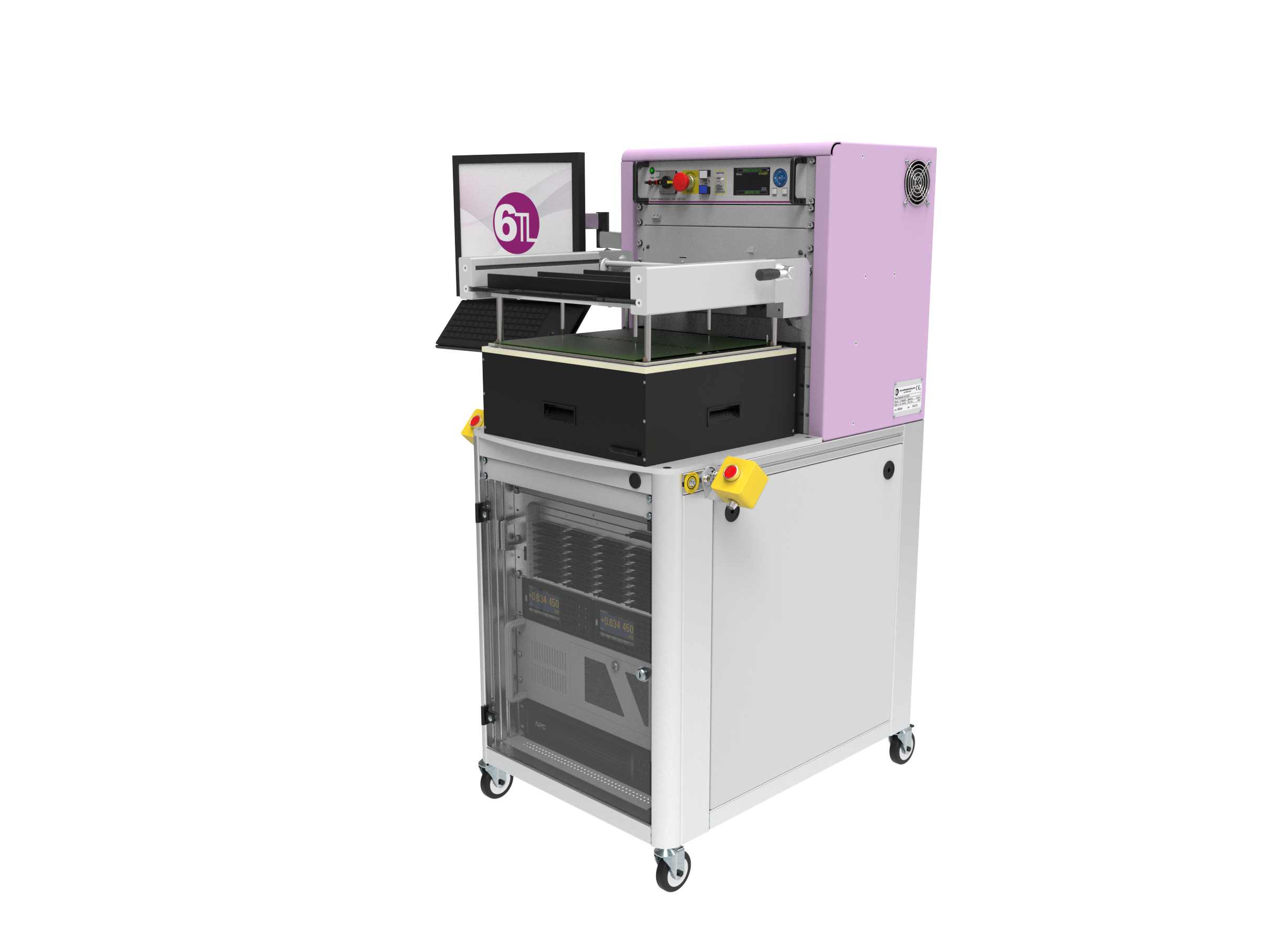

6TL22 Off-Line Testing Platform

PN: H71002200 Categories: ,

  • Compact, transportable and modular platform ready for ICT, FCT, Boundary Scan, HiPot, Vision or any combination of the previous technologies.
  • 6TL MMI module 7300.0x as advanced power and safety controller
  • Fixtures Receiver for Virginia Panel connection modules guaranteeing more tan 20.000 connections
  • Ready for different fixuring technologies
  • Ready to be used with YAV boards as switching technology or other switching modules.
  • 24Vdc Power Supply included
  • Phi6 Operator Interface included
  • Ready for fixture automatic detection
  • Ready for operation with servopusher
  • Ready for pneumatic installation if needed

Available on back-order

Learn about our Build to print service for Test Platforms. The 6TL22 Platform is a perfect base for the conception of a real modular Automatic Test Equipment for low to mid manufacturing volumes.

A system designed around the 6TL22 is simple, easy to maintain and cost effective. The rack is prepared for the direct integration of the three platform based receivers from Virginia Panel, the S6, G12 and G12X.

The core of the system can be either an Industrial PC or a NI-PXI. A UPS will protect the valuable instrumentation as well as control all the steps for an automatic power-up and down of the test system.

Thanks to the Test Rack Manager (MMI), interaction and control with the system, as well as the basic safeties, are implemented out-of-the-box.

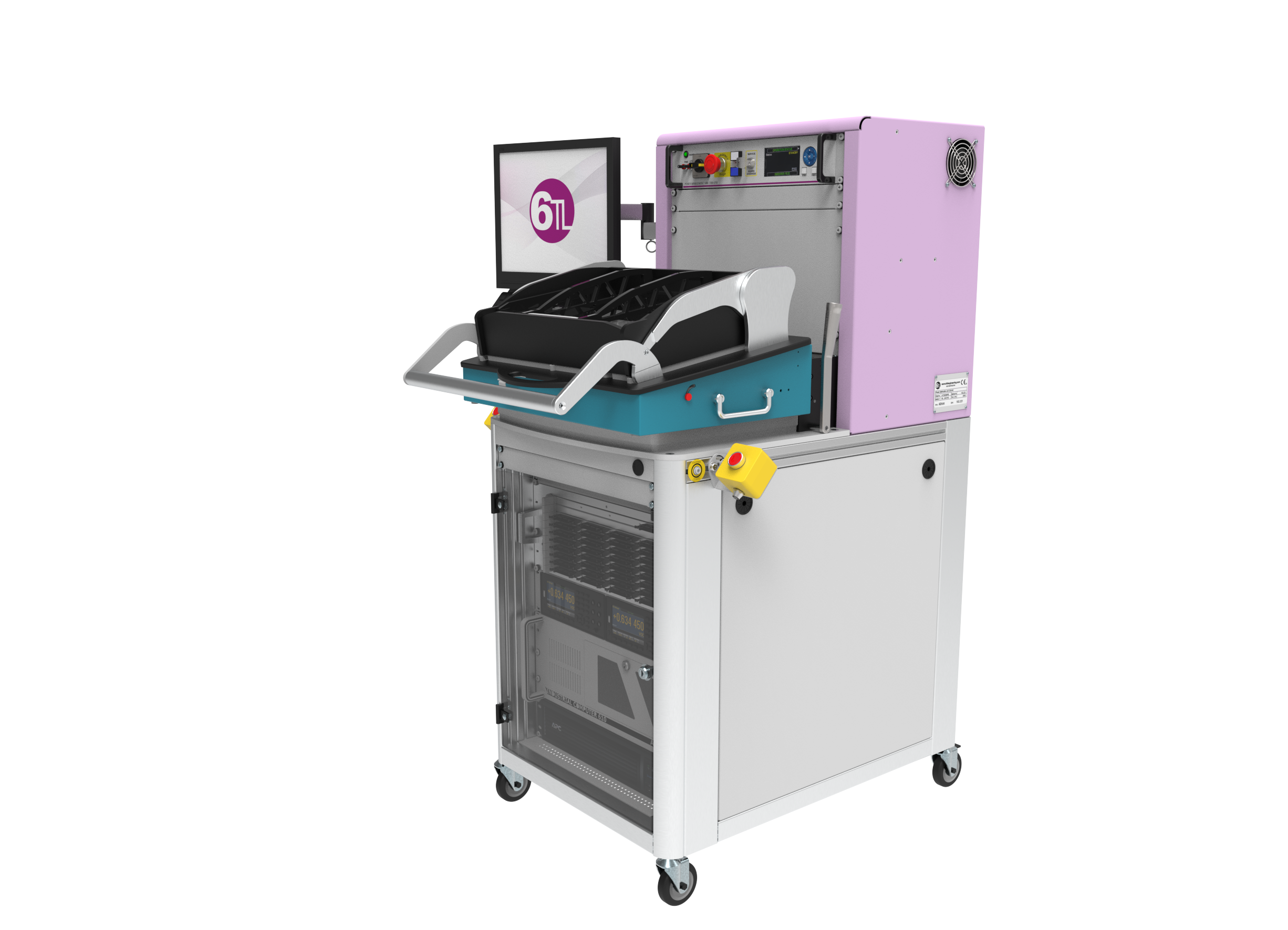

Typical 6TL-22 configuration would be the one shown in the image. Order the following products to get this configuration:
– H71002200, 6TL22 Off-Line Base Test Platform
– H73000301, Test rack manager
– H71007400 G12 Kit
– H71007300, Monitor & Keyboard in lockable drawer
– H71002190, Side adjustable kit for monitor
– MMSAI2U1000, UPS

Download the 6TL22 leaflet here: 6TL22
