48-Ch SPDT 1A-100VAC 24VDC Switching

PN: YAV91074 Categories: , Tags: ,

  • 48 relays SPDT, 2A
  • Switching 1A 100Vac. Up to 62,5VA
  • Shielded relays
  • CAN Control (or Ethernet with Ethernet to CAN Gateway)
  • Drivers dll & VIs available

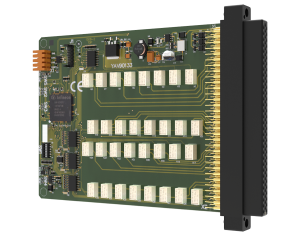

The YAV90074 module contents 48 SPDT Relays independent.

Each relays PCB contact track is shielded individually in order to handle very low voltage signals and audio signals with extremely low crosstalk. The build-in power supply includes two extra filters to reduce the DC voltage ripple to the relay coils; the control tracks have been drawn in quadrature with signal ones, reducing the inductive coupling produced by the transient current.

The ITA side connector allows free scanner, matrix or independent relays configurations, with an acceptable dielectric breakdown voltage of 1 kV.

Ideal for low voltage applications.

You must be registered to download the documentation.

Sign Up
All the data you have provided us shall be introduced into and treated in an automated data file belonging to S.A. Sistel, specially designed to meet the current relationship. Such data are confidential and belong solely to S.A. Sistel., who is the responsible for the file and is located at Solsonès, 87 . 08211 Castellar del Vallès, Barcelona. You are authorized to access, modify, cancel and deny the processing of the mentioned data by writing directly to the address specified above. In accordance with the right of access to information specified by the article 10 of the law currently in force 34/2002 dated 11 th. July related to the Services of the Information Society and Electronic Commerce, you are presently informed that the responsible for the web is S.A. Sistel., being available at the Internet domain www.6tlengineering.com with prior registering to the corresponding records, and to be contacted by users and/or interested parties at info@sasistel.es
Read our Privacy Policy
Log in

Login to download the file

Additional information

Location (Fx or RCV)


Relay Contacts


Channels (nr)




MAX Vac (V)
