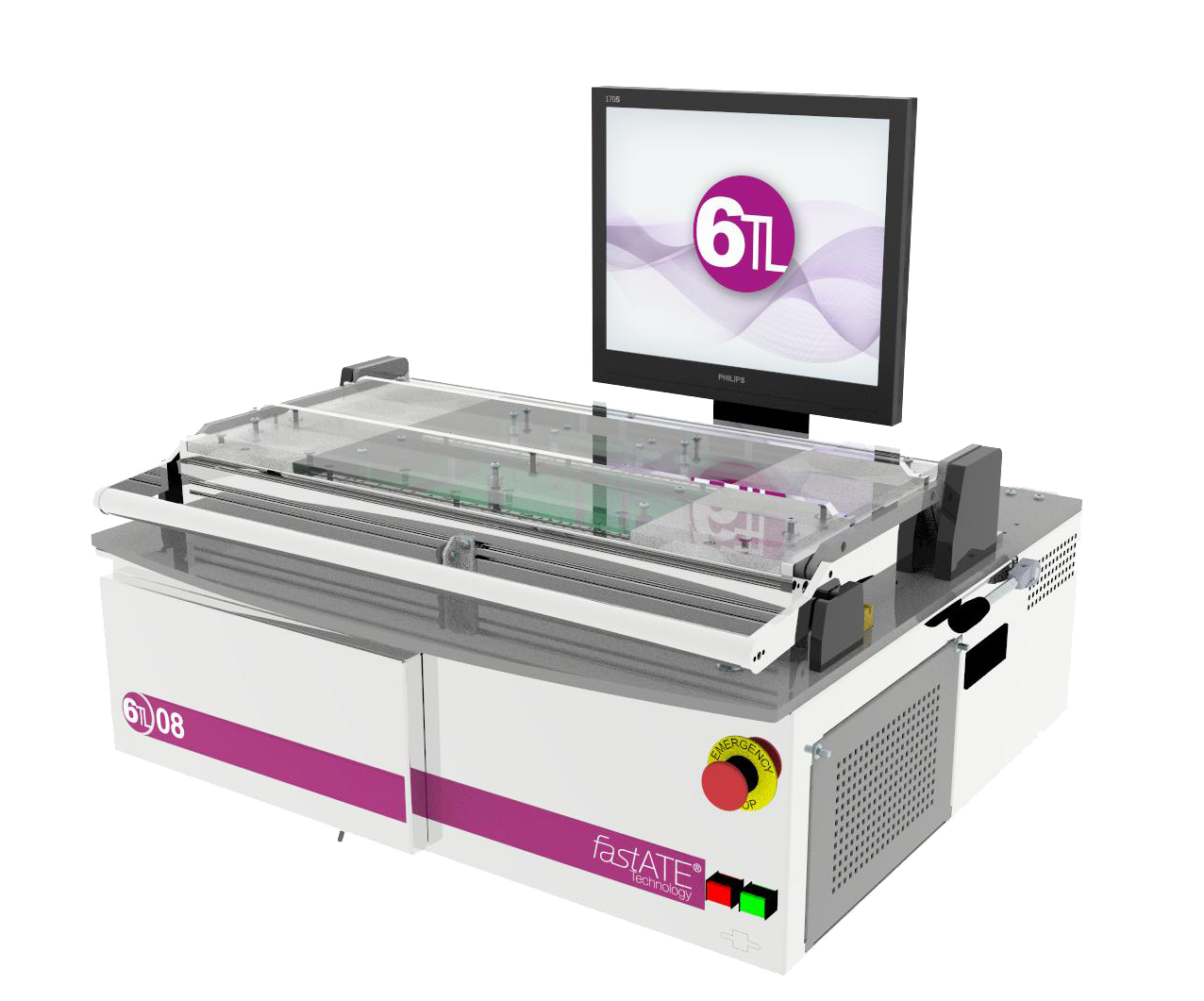

6TL08 Benchtop Test Platform

PN: H710008Nx-1 Category:

  • Bench top compact & modular platform.
  • Suitable for R&D, Prototyping, Quality control and Production.
  • Low to mid sized production batches
  • Ideal for ISP (Flash programming), BS (Boundary Scan) and FCT (Functional Test).
  • PXI chassis direct integration.
  • Linear Manual Pushing mechanism allowing up to 2000N of probe pressure.
  • Maximum probing area / PCB Size: 250x303mm
  • Low cost, easy and fast exchangeable fixture casette system with ITA frame.
Add to quote

Check 6TL08 Brochure for more options The 6TL-08 base platform was designed to cover the most common testing and in-system programming (ISP) needs with a reduced initial budget. The system includes a robust manual linear push mechanism allowing a low-cost fixture strategy thanks to the exchangeable cassettes
The platform enclosure features an 8-Slot fixture receiver, compatible with VPC 90 Series Mass Interconnect Module, as well as 6TL intelligent YAVModules (YAV90MMU &YAV90059), with room for fast ISP devices, optional PXI chassis and various power supplies. A removable back panel allows easy placement of custom connectors or test auxiliary circuitry.

Download the 6TL08 leaflet here: 6TL08

You must be registered to download the documentation.

Sign Up
All the data you have provided us shall be introduced into and treated in an automated data file belonging to S.A. Sistel, specially designed to meet the current relationship. Such data are confidential and belong solely to S.A. Sistel., who is the responsible for the file and is located at Solsonès, 87 . 08211 Castellar del Vallès, Barcelona. You are authorized to access, modify, cancel and deny the processing of the mentioned data by writing directly to the address specified above. In accordance with the right of access to information specified by the article 10 of the law currently in force 34/2002 dated 11 th. July related to the Services of the Information Society and Electronic Commerce, you are presently informed that the responsible for the web is S.A. Sistel., being available at the Internet domain www.6tlengineering.com with prior registering to the corresponding records, and to be contacted by users and/or interested parties at info@sasistel.es
Read our Privacy Policy
Log in

6TL-08 Brochure
Login to download the file

TECHNICAL MANUAL 6TL08
Login to download the file

Additional information

Type

Production volume

Receiver Capacity

Maximum Dimensions PCB

UUT Contact

Max TP

Functional Test

Incircuit Test

Boundary Scan Test

RF Test
