8-Sites Flash Programmer w/Relay Barrier, True parallel channels

PN: YAV90FR2, YAM90FR2 Categories: ,

  • 8-Sites Universal Flash Programmer.
    SMH Flash Runner 2.0
  • True Parallel and Independent.
  • Relay Barrier Integrated.
  • RCV module – Virginia Panel and
    MacPanel versions available
  • CAN Bus or Ethernet Control.
  • Phi6 Environment compatible
  • Form Size L
Add to quote

Description

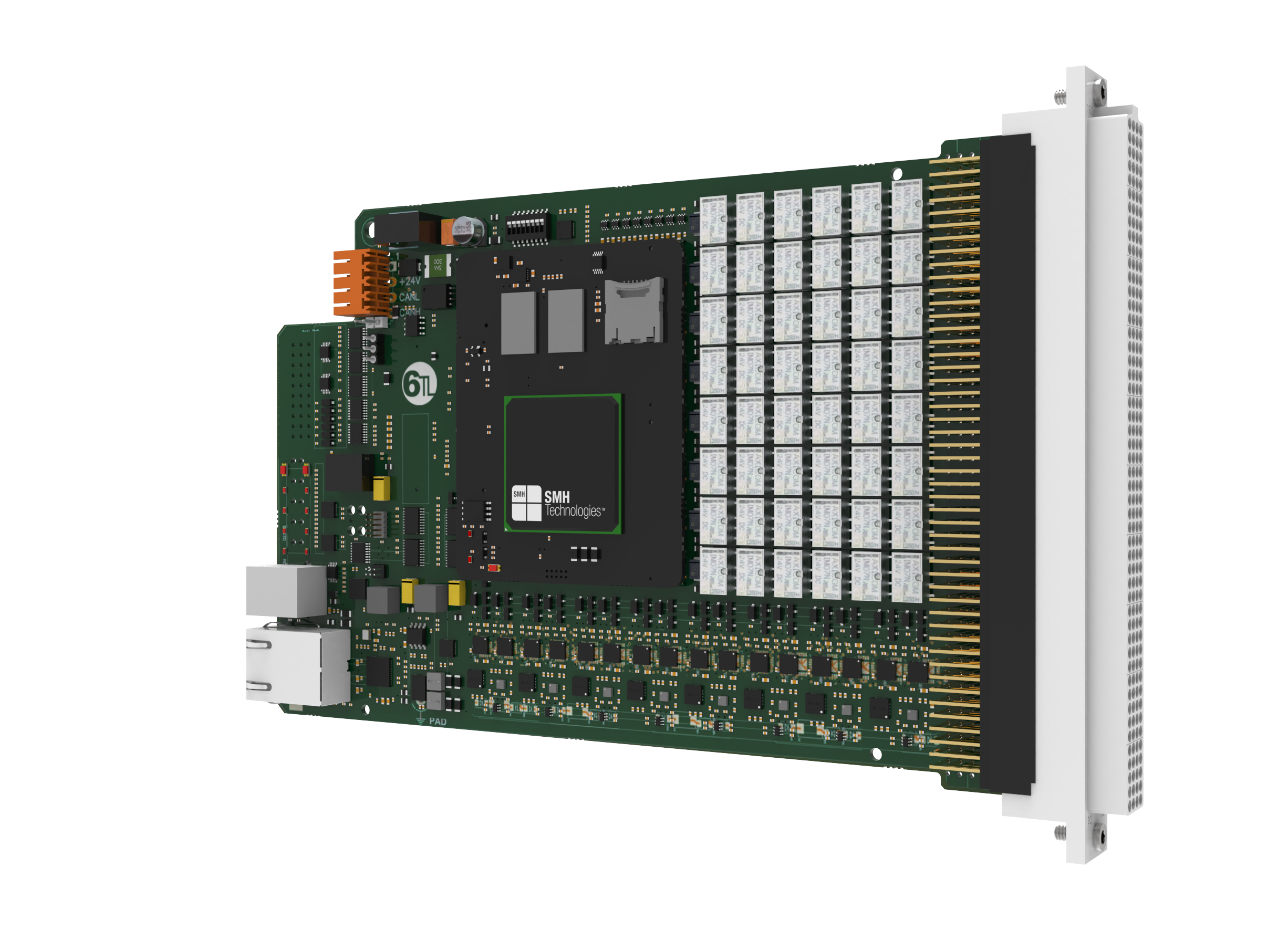

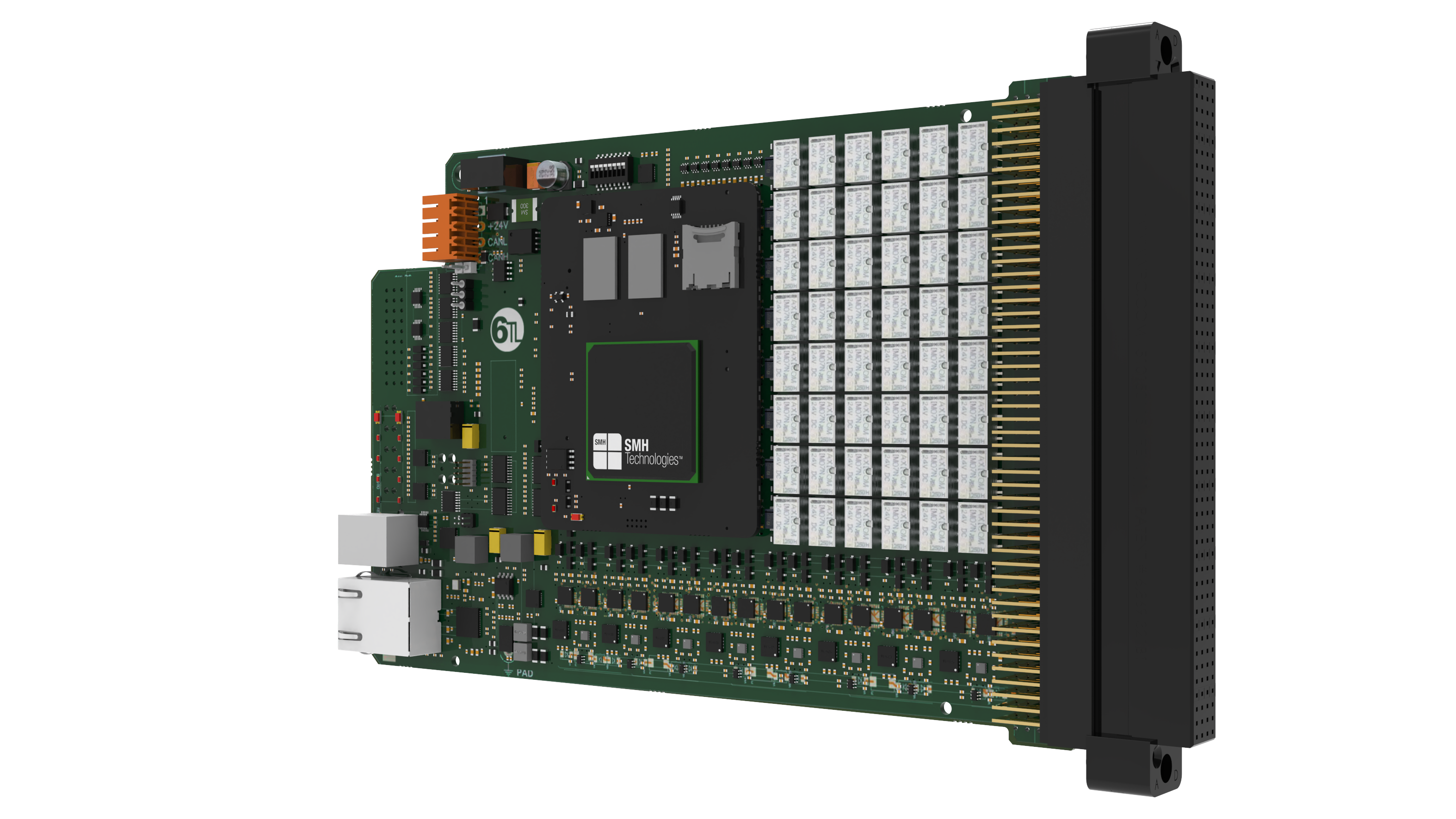

The YAV90FR2 or YAM90FR2 is a flash programmer housed in a compact 6TL YAV Module form factor, designed for
seamless integration into automated test environments. It incorporates the advanced FlashRunner 2.0 technology from
SMH, enabling efficient programming of microcontrollers, flash memory, and other logic or memory devices. The
module features flexible connectivity options, with all digital I/O (DIO), programmable voltage lines, and corresponding
ground lines switchable via integrated relays.

Download the full brochure here: YAV90FR2 / YAM90FR2
