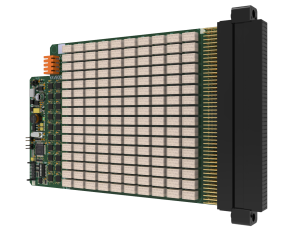

128-Ch 0,250A-100VAC 24VDC Multiplexer/Matrix

PN: YAV90128 Categories: ,

  • 128 SPST relays
  • Switching up to 100Vac/dc V and 250mA
  • CAN Control (or Ethernet with Ethernet to CAN Gateway)
  • Drivers dll & VIs available

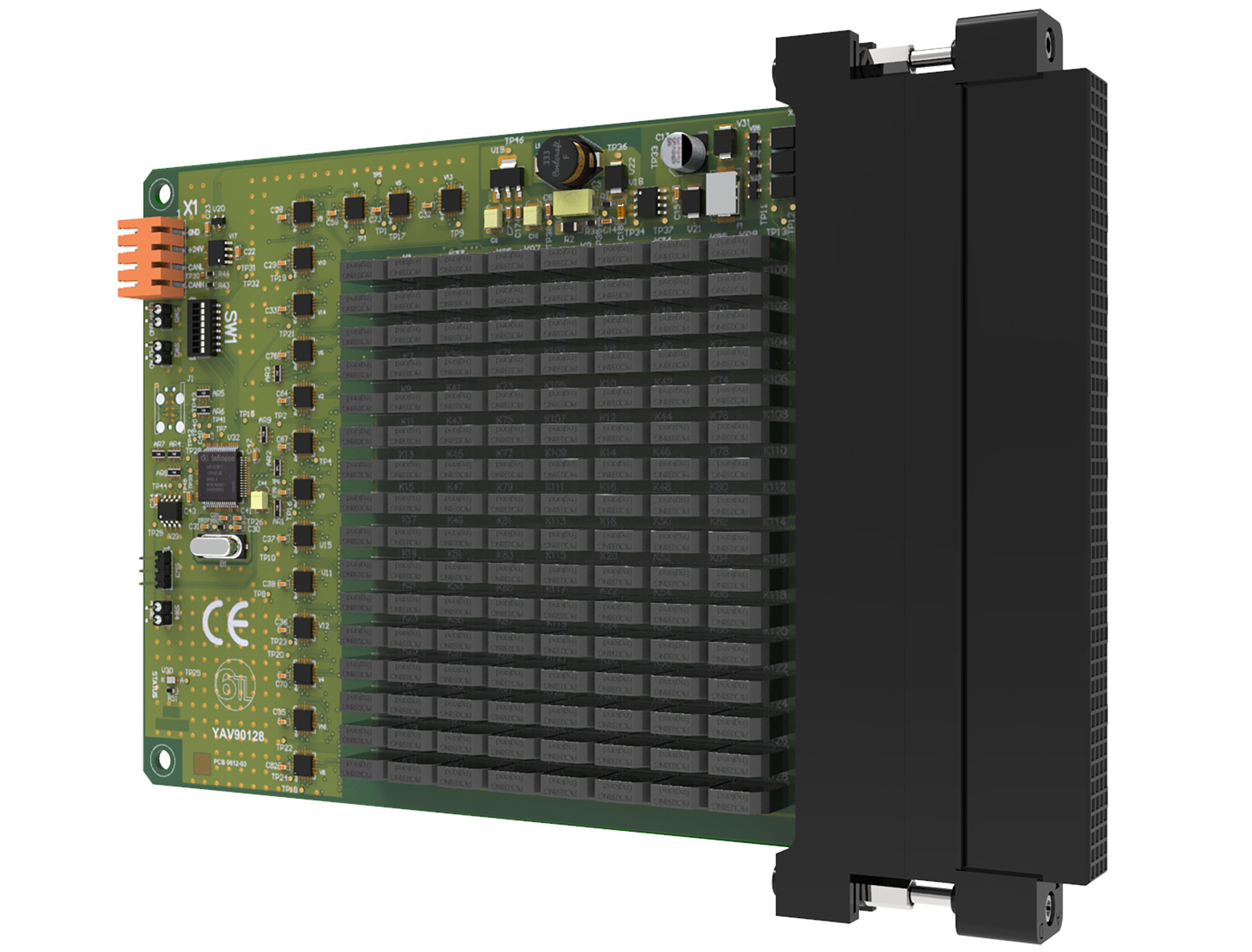

A unique YAV90128 module is able to do all combinations of signal computation at low frequency between the device under test and the various measuring instrumentation inside a test system.

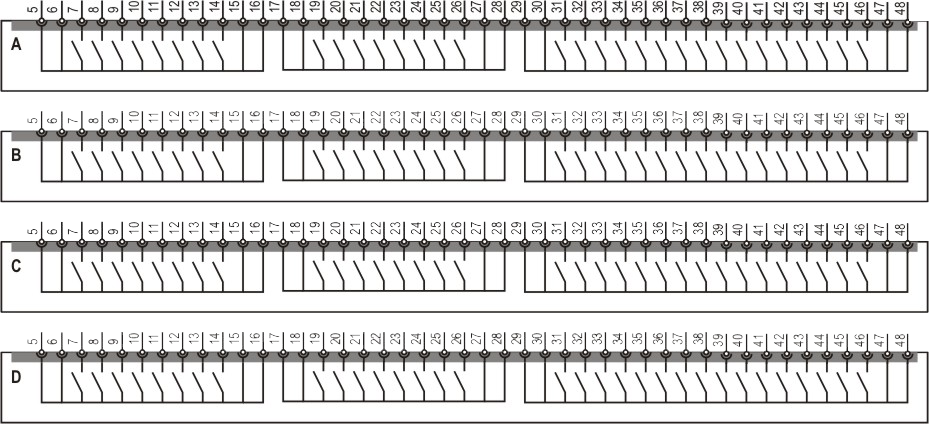

It is organized in 4 lines of 16 relays and 8 lines of 8 relays each, with contacts that can be configured as scanner or matrix, individually in each test fixture. This configuration possibility makes it ideal to be used in automatic test systems where maximum flexibility is needed.

Only a 24VDC power supply is needed to power the board, wired at the back 4 pin connector together with the CAN bus port.

With its 192 pin Quadra paddle connector it has dedicated inputs to automatically identify its position in the test system, in case more modules are mounted.

It has CAN bus control and all the software needed to be used “Plug & Play” in systems based on executive software LabView and TestStand.
