Two pole 4x8 Switching Matrix YAV904X8
YAV904X8
Two pole 4x8 Switching Matrix YAV904X8
YAV904X8

32-Ch DPST 2A-125VAC 24VDC Multiplexer

PN: YAV904X8 Categories: ,

  • 32 relays : 4 banks 8 relays.
  • Switching 125Vac y 2A
  • CAN Control (or Ethernet with Ethernet to CAN Gateway)
  • Drivers dll & VIs available
Add to quote

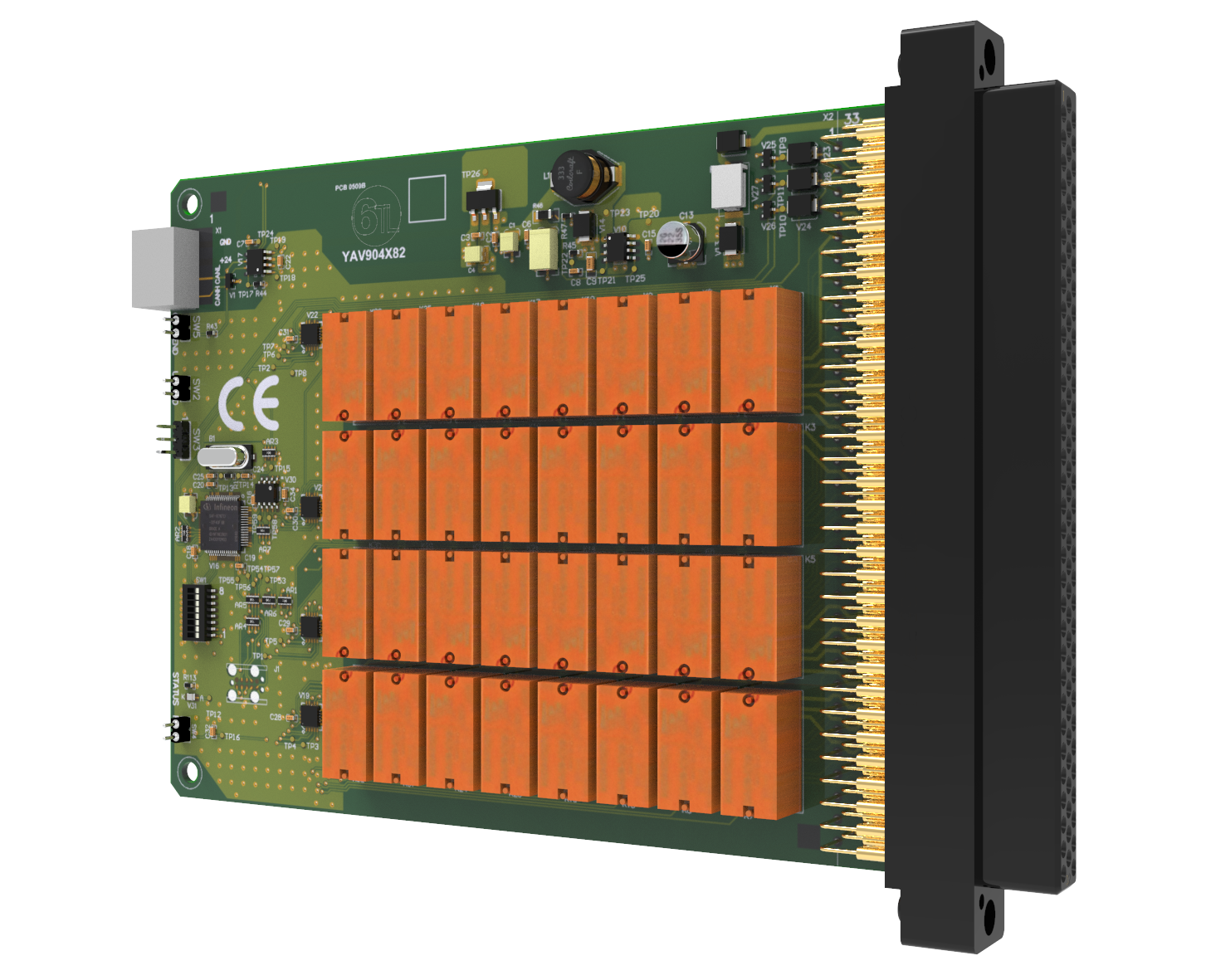

The YAV904X8 features 32 channels of DPST relays distributed in 4-banks. The module uses electro-mechanical relays allowing each channel to switch current up to 2A and voltage up to 125VAC.
By connecting free pins available in each of the banks, they can be joined to configure the multiplexing solution needed in the test application.

You must be registered to download the documentation.

Sign Up
All the data you have provided us shall be introduced into and treated in an automated data file belonging to S.A. Sistel, specially designed to meet the current relationship. Such data are confidential and belong solely to S.A. Sistel., who is the responsible for the file and is located at Solsonès, 87 . 08211 Castellar del Vallès, Barcelona. You are authorized to access, modify, cancel and deny the processing of the mentioned data by writing directly to the address specified above. In accordance with the right of access to information specified by the article 10 of the law currently in force 34/2002 dated 11 th. July related to the Services of the Information Society and Electronic Commerce, you are presently informed that the responsible for the web is S.A. Sistel., being available at the Internet domain www.6tlengineering.com with prior registering to the corresponding records, and to be contacted by users and/or interested parties at info@sasistel.es
Read our Privacy Policy
Log in

YAV904X8 32 Ch 2-Wire Mux/Matrix Switch User Manual
Login to download the file

Phi6 Example YAV904X8 (*.vi; *.cfg)
Login to download the file

Additional information

Location (Fx or RCV)

Receiver

Relay Contacts

DPST

Channels (nr)

32

MAX I (A)

2

MAX Vac (V)

125

Banks

4

Poles

8
