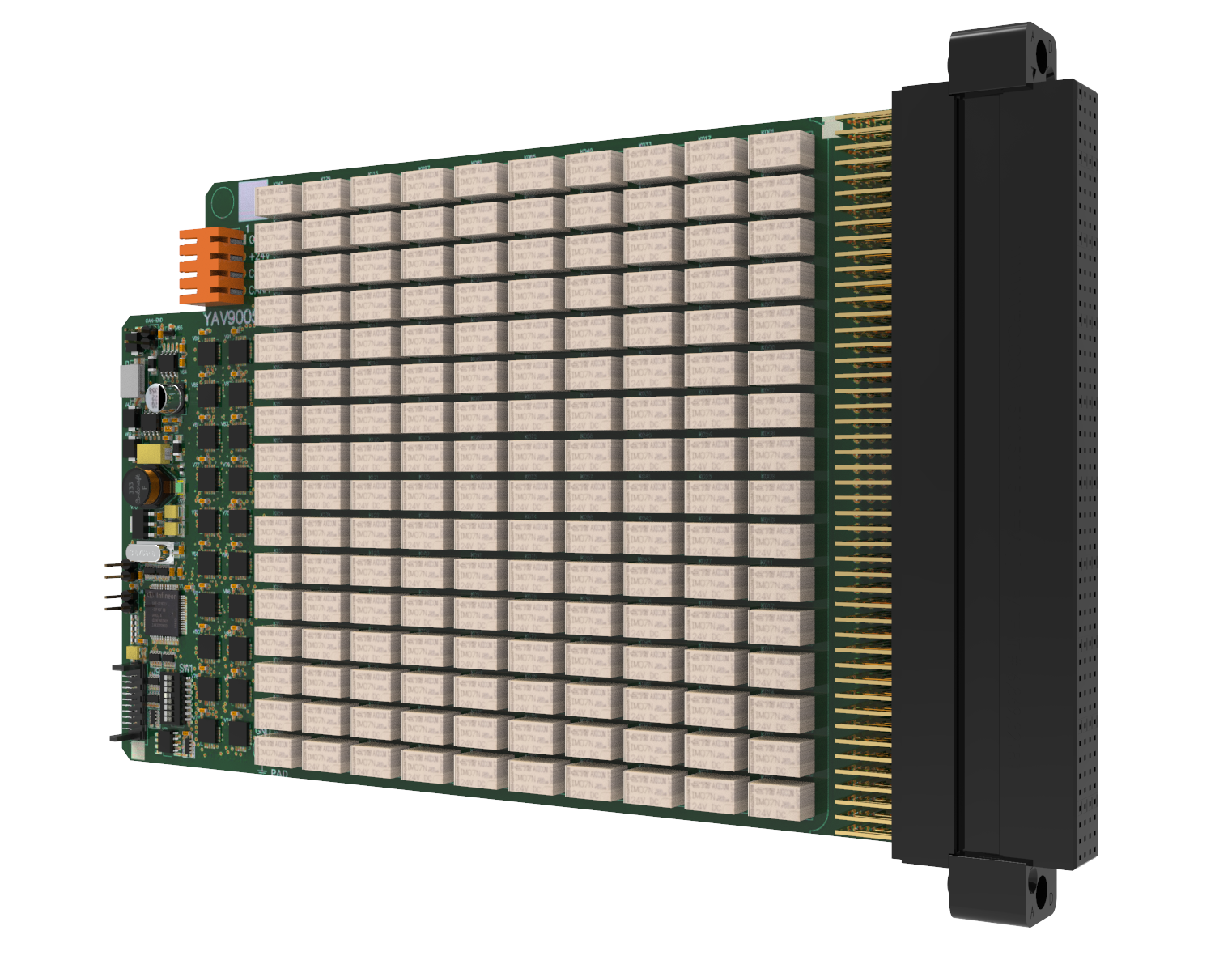

160-Ch 2A-250VAC 24VDC Multiplexer/Matrix

PN: YAV90057 Categories: ,

  • 160 relays SPST in 10 banks.
  • Switching up to 62,5VA
  • Bank Isolation 500V.
  • CAN Control (or Ethernet with Ethernet to CAN Gateway)
  • Drivers dll & VIs available
Add to quote

The YAV90057 is a High density multiplexer, with 10-bank, 16-channel, 1 pole. It uses high quality electro-mechanical relays allowing each channel to switch current up to 2A and voltage up to 220VDC/250VAC.
Larger multiplexers may be constructed thanks to connecting free pins available in each of the banks, and also connecting to other YAV modules thanks to the test fixture.

Download the full brochure here: YAV90057

You must be registered to download the documentation.

Sign Up
All the data you have provided us shall be introduced into and treated in an automated data file belonging to S.A. Sistel, specially designed to meet the current relationship. Such data are confidential and belong solely to S.A. Sistel., who is the responsible for the file and is located at Solsonès, 87 . 08211 Castellar del Vallès, Barcelona. You are authorized to access, modify, cancel and deny the processing of the mentioned data by writing directly to the address specified above. In accordance with the right of access to information specified by the article 10 of the law currently in force 34/2002 dated 11 th. July related to the Services of the Information Society and Electronic Commerce, you are presently informed that the responsible for the web is S.A. Sistel., being available at the Internet domain www.6tlengineering.com with prior registering to the corresponding records, and to be contacted by users and/or interested parties at info@sasistel.es
Read our Privacy Policy
Log in

Phi6 Example YAV90057 (*.vi; *.cfg)
Login to download the file

TECHNICAL MANUAL YAV90057
Login to download the file

Additional information

Location (Fx or RCV)

Receiver

Relay Contacts

SPST

Channels (nr)

160

MAX I (A)

2

MAX Vac (V)

250

Banks

10

Poles

16
