64-Ch 2A-250VAC 24VDC Mux/Matrix

PN: YAV90059 Categories: ,

  • Very high density, versatile multiplexer
  • Flexible configurations to match specifics needs
  • 8-bank 8-channel 2-pole multiplexers, 1-pole selection, interbank connection and isolation switching
  • Many configurations up to 128-channel 1-pole multiplexer
  • Internal cycles counter per relay contact
  • Switching 250 VAC and 2 A
  • CAN bus or Ethernet control
Add to quote

Description

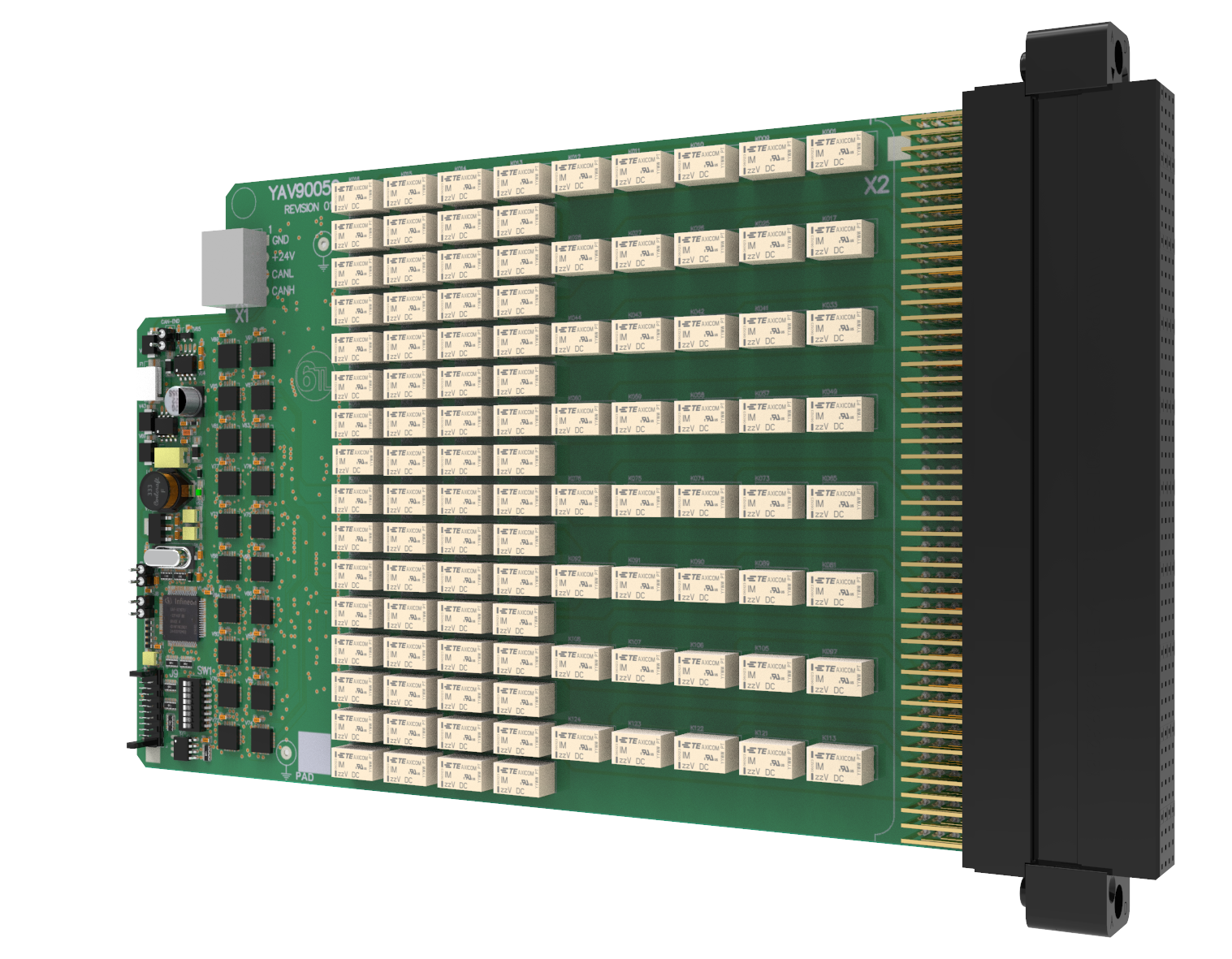

The YAV90059 module can be configured in different ways depending the application needed: from 8-bank, 16-channel, 1 pole to 8-bank, 8-channel, 2 pole, or also 128 Channel 1-pole among other possibilities. It uses high quality electro-mechanical relays allowing each channel to switch current up to 2A and voltage up to 300 VDC/250 VAC.

Larger multiplexers may be constructed thanks to connecting free pins available in each of the banks, and also connecting to other YAV modules thanks to the test fixture.

Typical applications for this switch module include signal routing in ATE systems and data acquisition systems, multiplexing of measurment points or supplies.
