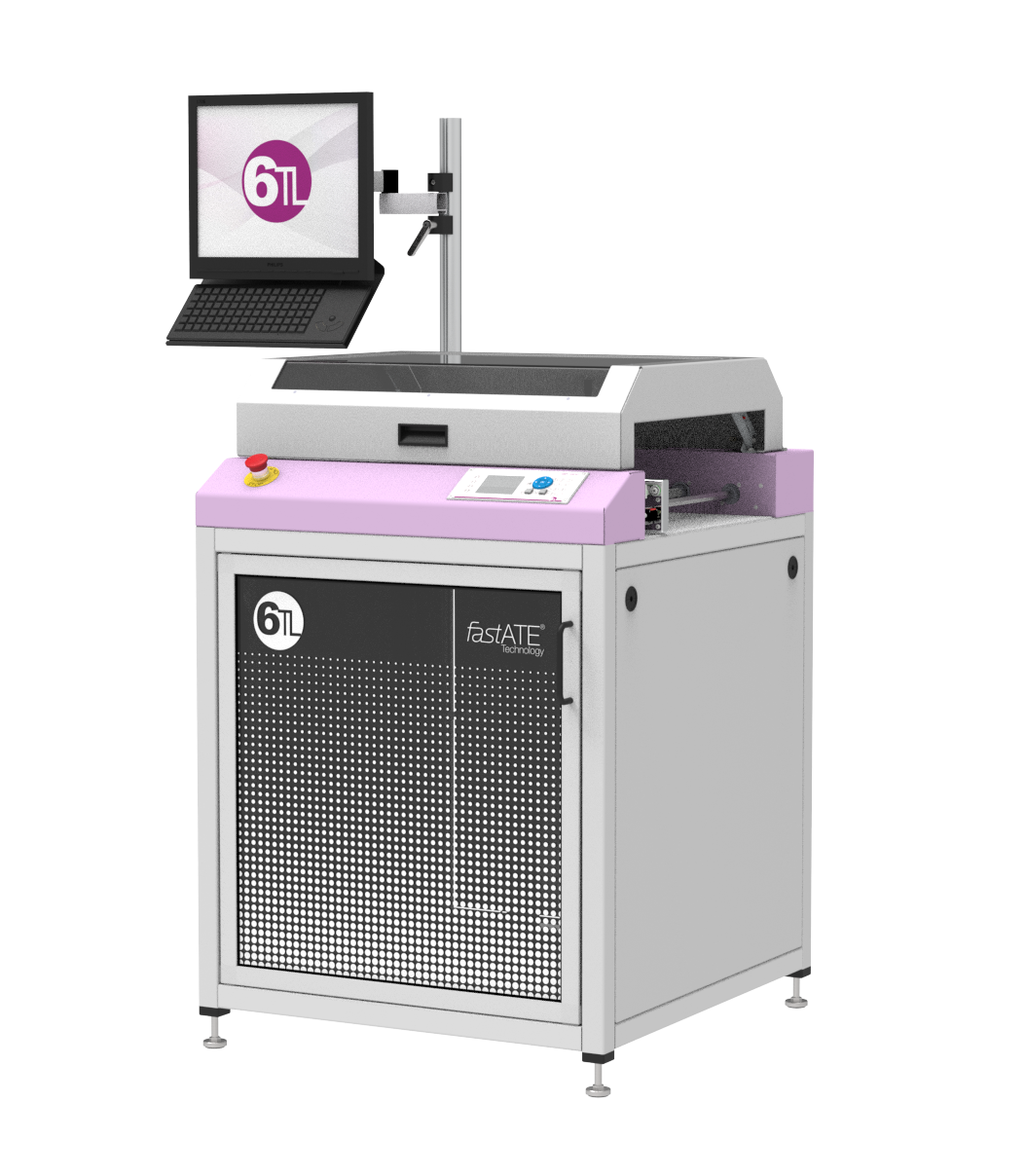

6TL-3X INLINE Header conveyor 765 mm length

PN: AQ580 Category:

  • PCB up to 600mm length 400 mm width
  • Programmable transfer speed up to 1 m/s
  • Automatic Previous/Next speed adjustment
  • 2D Code reader w/automatic positioning
  • Pre-wired for second 2D Code reader
  • Automatic width setting
  • PC for line management w/UPS with 20” monitor and keypad in adjustable position arm
  • 24 Ports PoE Switch
  • Power inlet rack with current protections and line safety relay
  • Top cover and door w/safety contacts inhibiting line modules while active
  • Mechanisms self-test
  • Width auto-adjustment and cyclic width
  • Non-contact electronic stop of the PCB
  • 4U Free on the 19” Rack
  • Interfaces SMEMA 9851 y IPC-HERMES 9852
  • CE certified

Available on back-order

Add to quote

Header conveyor with cover and safety contacts for operator protection, CAN bus operated 765 mm length, Width adjustable from 50 to 500 mm. Belt and width with CNC Stepper motors.

Download the full brochure here: 6TL-3X In-line header conveyor
