High speed Lifting Conveyor

PN: AN101 Category: Tags: ,

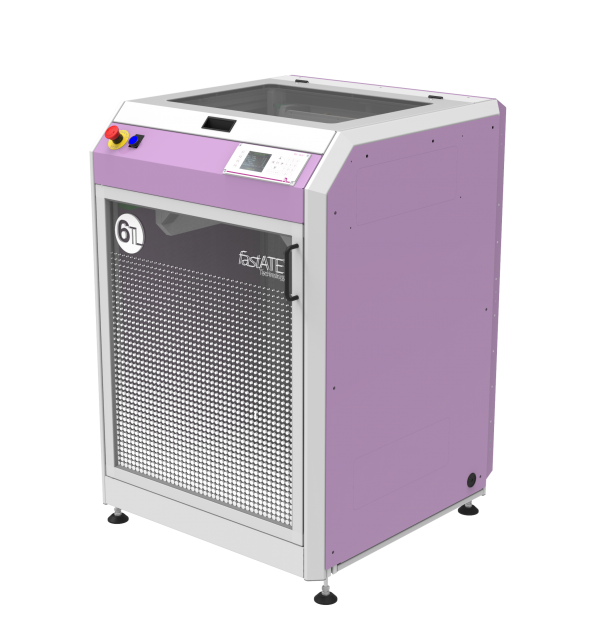

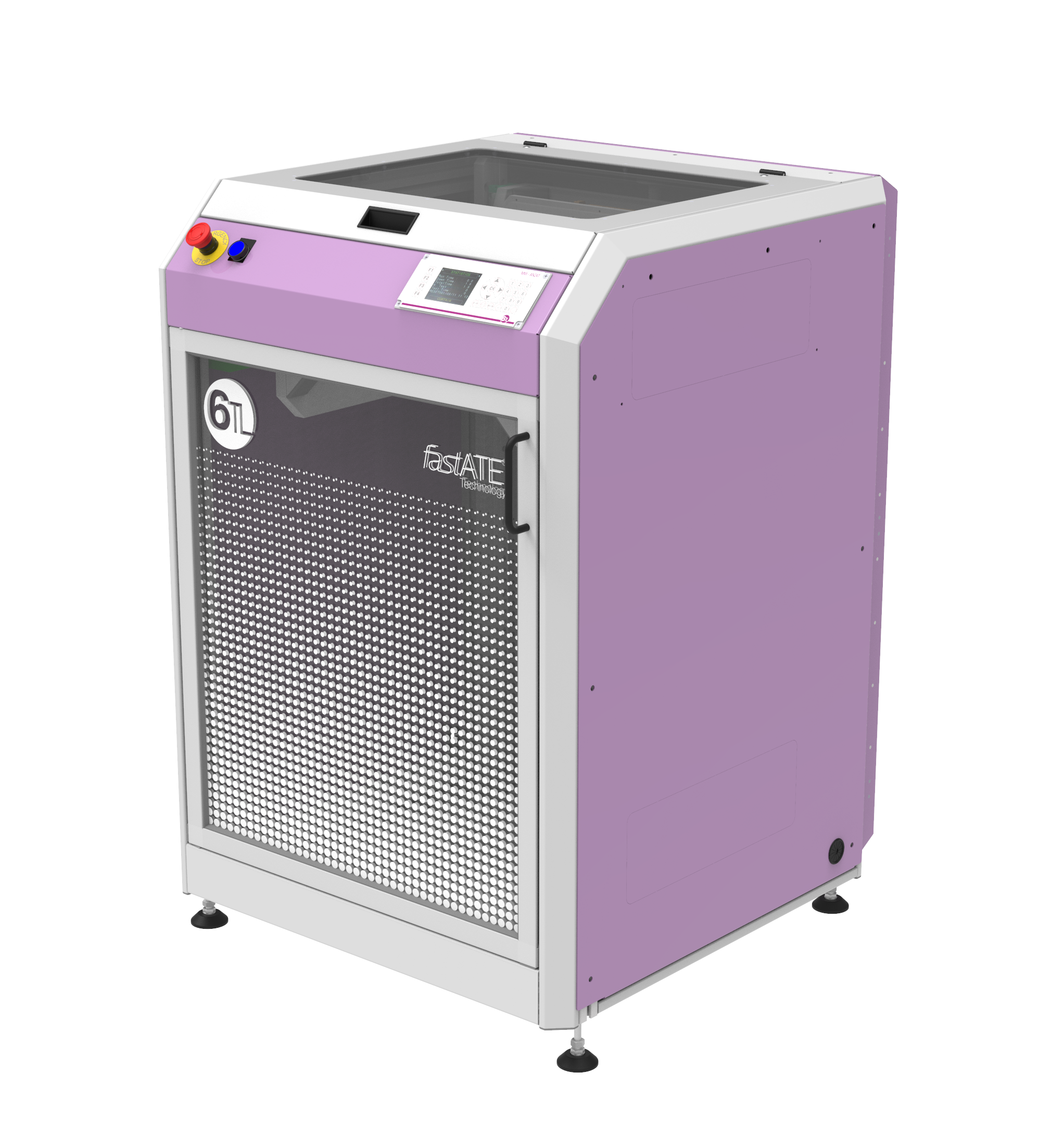

The lifter unit is able to transfer pallets from the main line to the retour conveyor or vice-versa, so that pallets can be reourned to the line start point.

The Lifting conveyor transfers PCBs or Pallets at high speed, from standard conveyor line to the lower return conveyor, up or down line stream. A top gate allows the operator to download the devices that are being carried by the pallets (can be optionally protected with light courtains).

  • For pallets up to 450x382mm.
  • Belt speed: 1,5 m/s
  • Fixed rail: Front, operator side.
  • PCB clearance: Top, 199mm; Bottom: 20mm
  • Automatic conveyor width adjustment.
  • Transfer time up-down-up: 6s
  • SMEMA interface
  • Dimensions: 770x805x1139mm
  • TFT Screen Man-Machine-Interface
  • Machinery Directive 2006/42/CE
  • Safety interlock with previous or next
    machines

Additional information

Weight150 kg
Dimensions80.5 × 77 × 113 cm
